IR Motion detector IR CEIL B

Surface-mounted, Range max. 8m/360°, max. 2000/1000W, IP65

graduated prices:
Minimum quantity: 3 EUR 14.99

EUR 15.99
Content 1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/62/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "59b3b149d7cdb6c40ae4eba9b4028e88"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/62/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "59b3b149d7cdb6c40ae4eba9b4028e88"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6766c06222c0b', 'paypal', 'pay', 'rect', 'blue'); }); } else { renderPayPalButtons('6766c06222c0b', 'paypal', 'pay', 'rect', 'blue'); }

Ready for shipment, delivery time 2 days

Item number IR_CEIL_B

IR motion detector for outside, ceiling, surface mounting

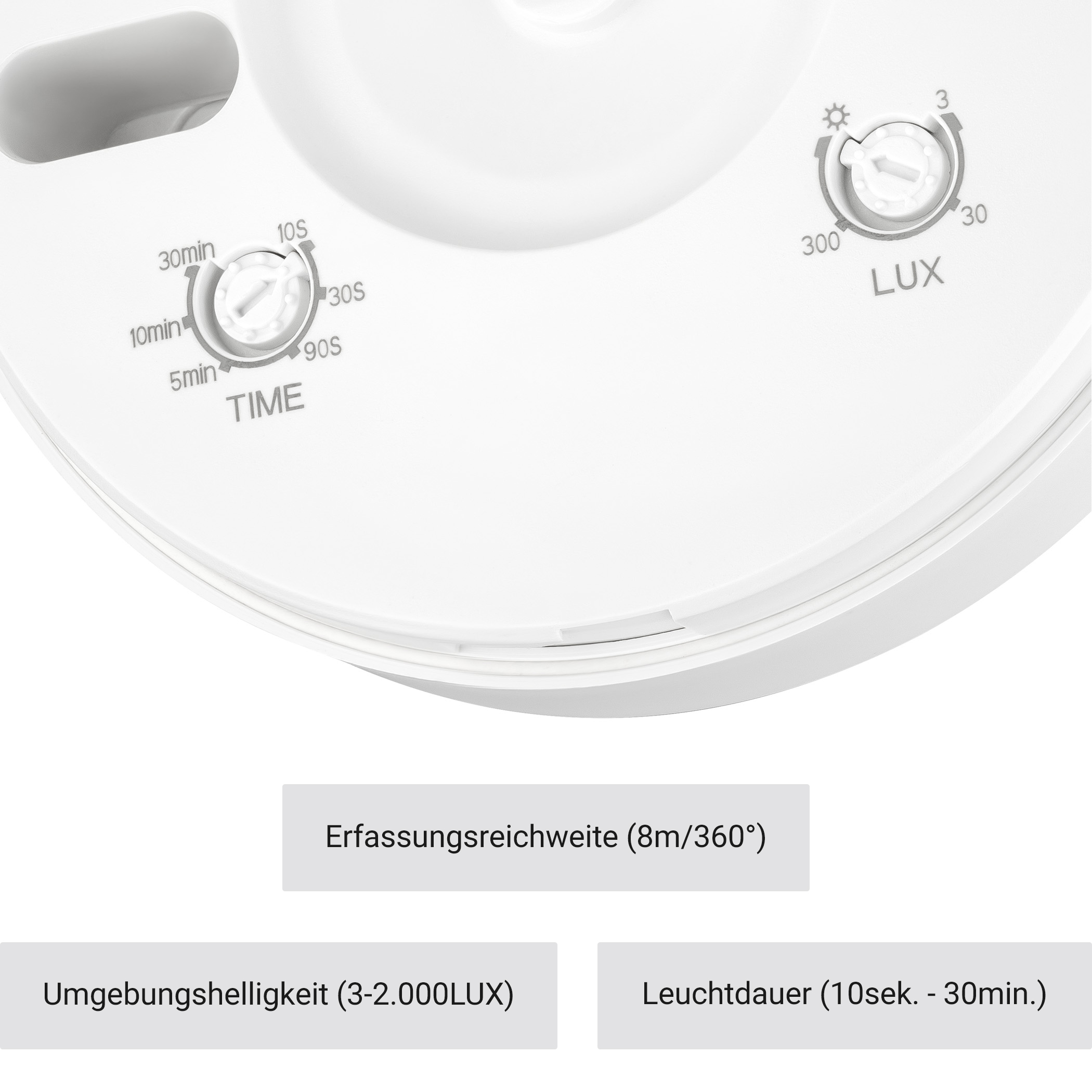

The infrared sensor of this motion detector detects movements of persons, large animals and vehicles in a detection range of up to 8m with a detection angle of 360° (on free area) and switches on the connected lighting. After a preset time of approx. 10 seconds to 30 minutes, the motion detector switches off again when no more movements are detected. With the help of a controller, the switch-on sensitivity of this device can be regulated depending on the ambient brightness (in the range between 3 and 2,000 LUX).

This surface-mounted motion detector is best suited for ceiling mounting.



Produkt features

Operating voltage: 220-240V AC 50/60Hz
Max. Power consumption: max. 2000W with usual lamps,
max. 1000W with LED and energy saving lamps
Power consumption on standby: 0,5W
Detection speed: 0,6-1,5m/s

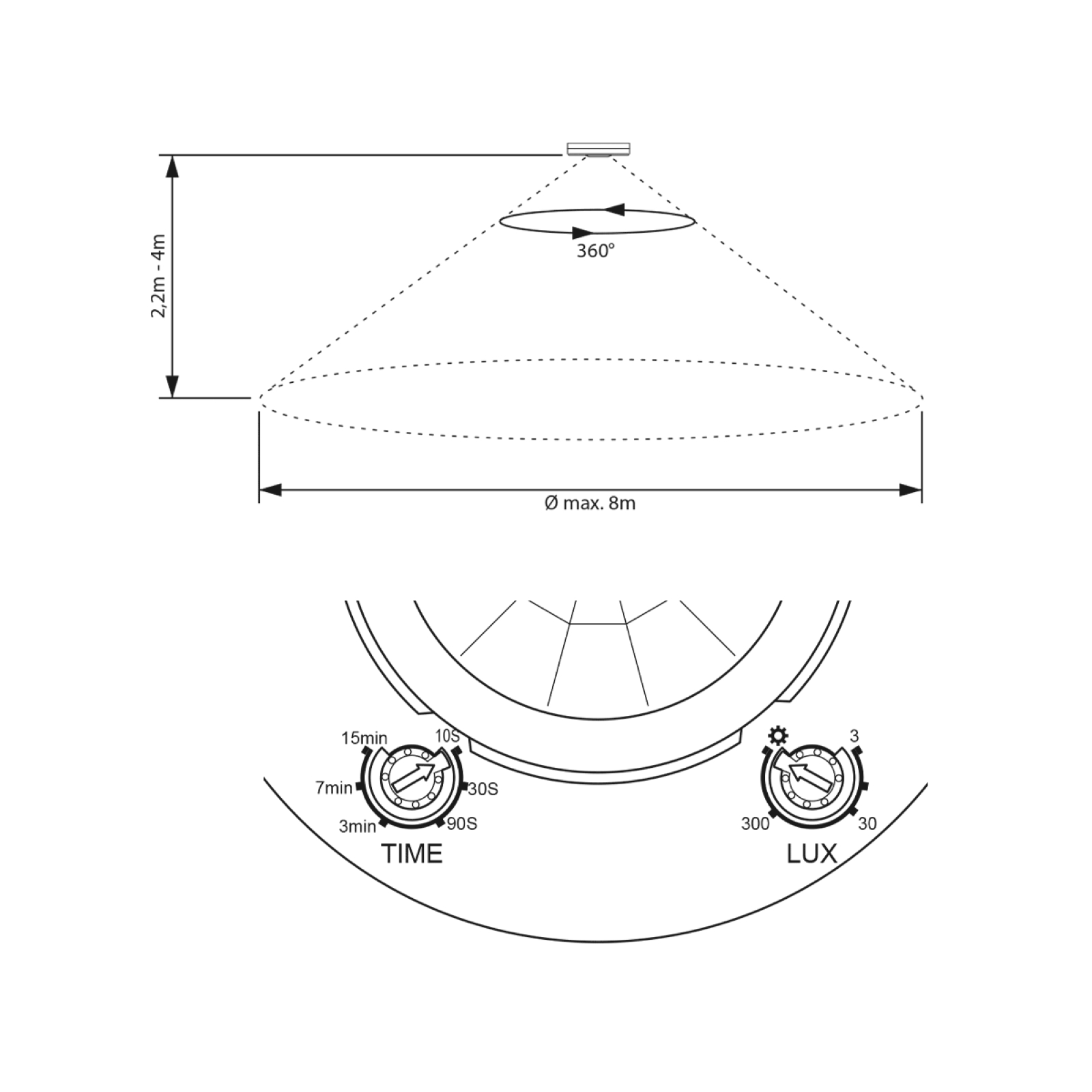

Detection range: Max.8m (< 24°C)/ 360°
Ambient brightness: < 3-2.000LUX
Protection: IP65
Switch-off delay: Min. 10s +/-3s
Max. 30min +/-2min
Ambient temperature: -20° to +40°C
Humidity: < 93%

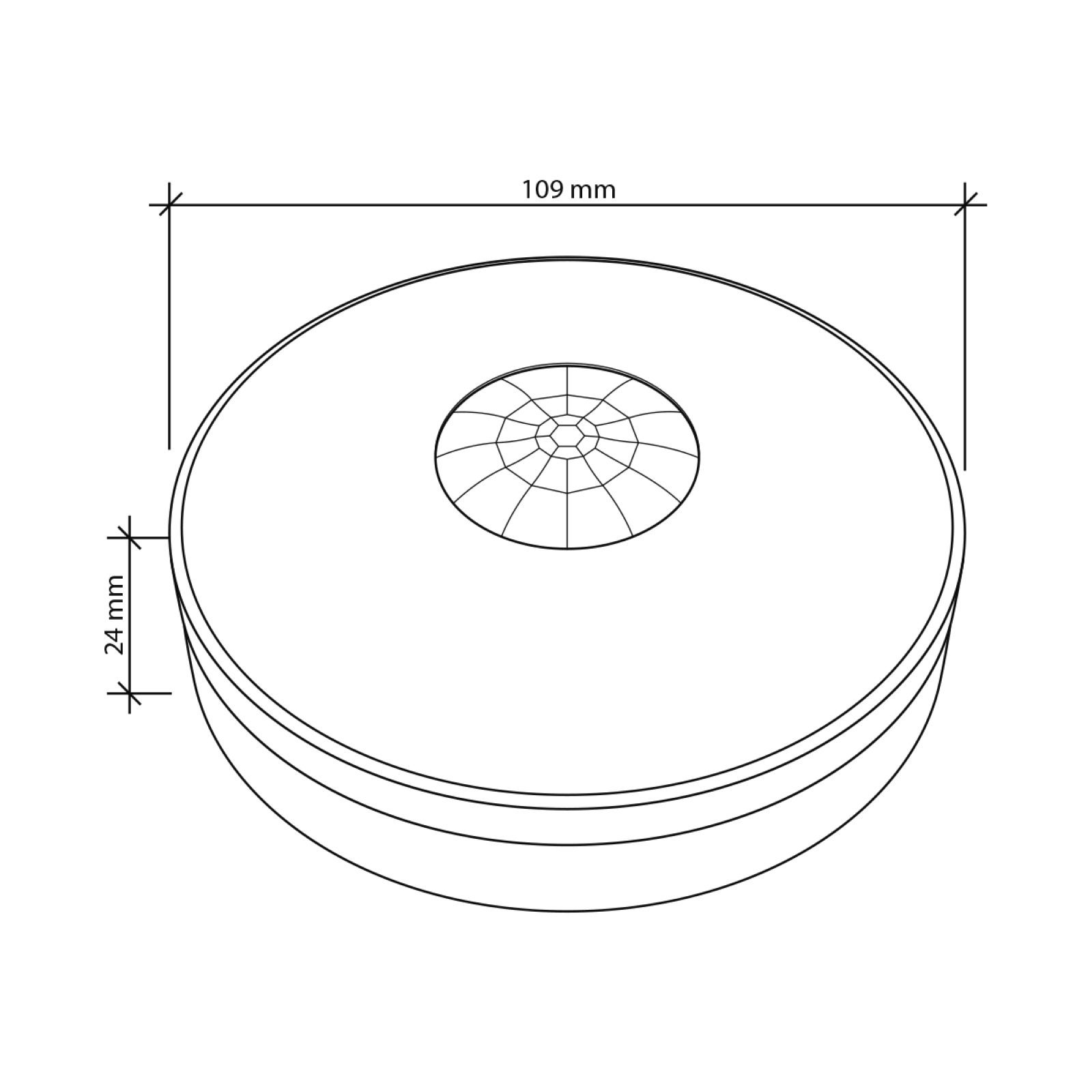

Installation dimensions: Ø109 x 24mm
Housing material: Plastic



Assembly and operating instructions as PDF



Scope of delivery:

  • 1 x SEBSON® IR motion detector IP65



Item ID 4127
Condition New
Age rating No age restriction
Manufacturer SEBSON
Manufacturing country China
Content 1 piece
Weight 130 g
Net weight 130 g
