IR Motion detector IR OUT AA

Range max.12m/180°, swivelling, max. 800/400W, IP44

graduated prices:
Minimum quantity: 3 EUR 12.99

EUR 13.99
Content 1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/62/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "73355699ba9df91f2c29ff27989a39c2"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/62/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "73355699ba9df91f2c29ff27989a39c2"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6766bbc2cc0bd', 'paypal', 'pay', 'rect', 'blue'); }); } else { renderPayPalButtons('6766bbc2cc0bd', 'paypal', 'pay', 'rect', 'blue'); }

Ready for shipment, delivery time 2 days

Item number IR_OUT_AA

Swivelling IR motion detector for outside

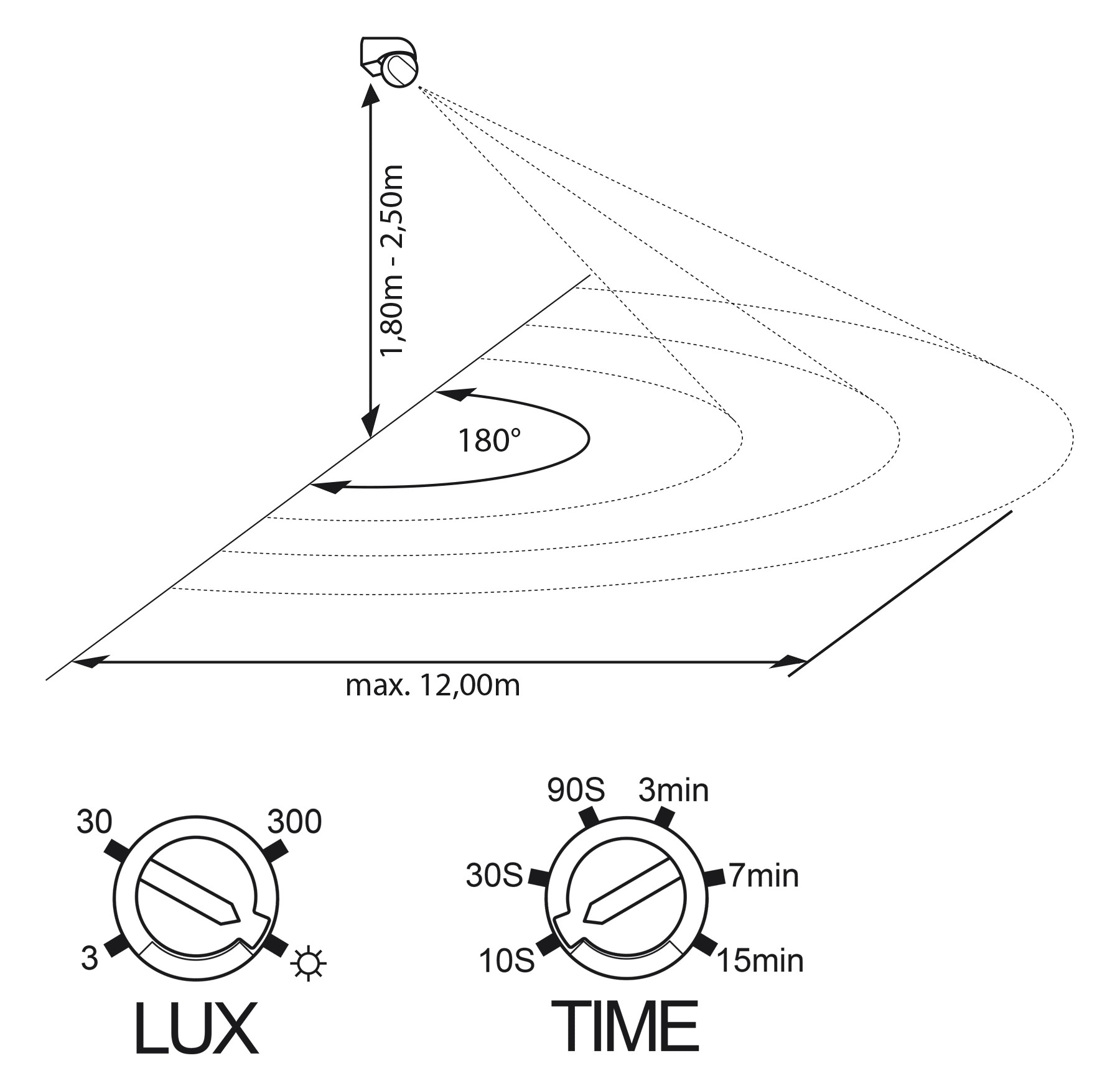

The infrared sensor of this motion detector detects movements of persons, large animals and vehicles in a detection range of up to 12m with a detection angle of 180° (on free area) and switches on the connected lighting. After a preset time of approx. 10 seconds to 15 minutes, the motion detector switches off again when no more movements are detected. With the help of a controller, the switch-on sensitivity of this device can be regulated depending on the ambient brightness (in the range between 3 and 2,000 LUX). In addition, the detection area can be adjusted in a targeted manner by swivelling it vertically and horizontally.



Product features

Operating voltage: 220-240V AC 50/60Hz
Max. Power consumption: max. 800W with usual lamps,
max. 400W with LED and energy saving lamps
Power consumption on standby: 0,5W
Detection speed: 0,6-1,5m/s
Detection range: Max.12m (<24°C)/180°
Ambient brightness: <3-2.000LUX
Protection: IP44

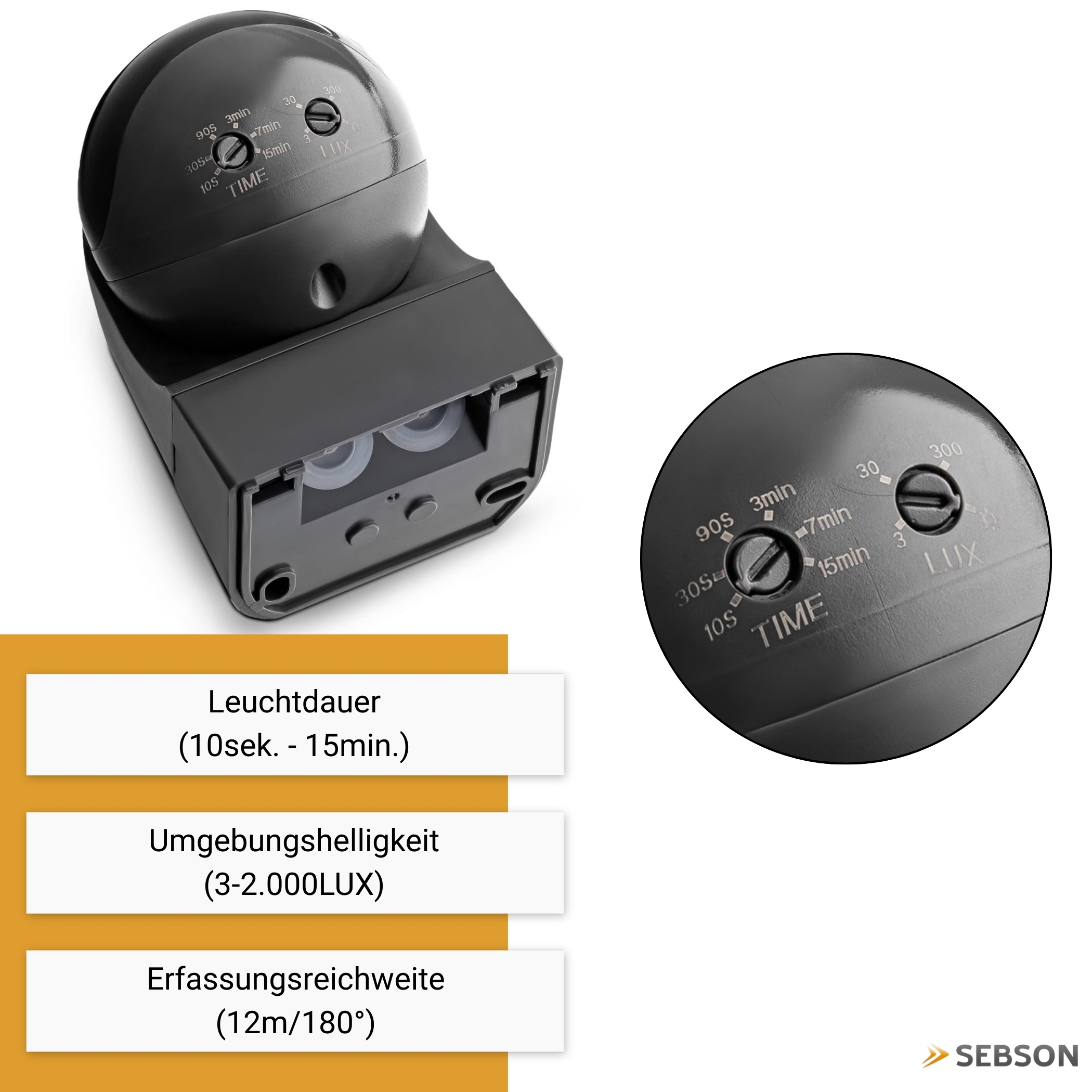

Switch-off delay: Min. 10s +/-3s - Max. 15min +/-2min
Ambient temperature: -20° to +40°C
Humidity: <93%
Swiveling: 40° vertical, 100° horizontal

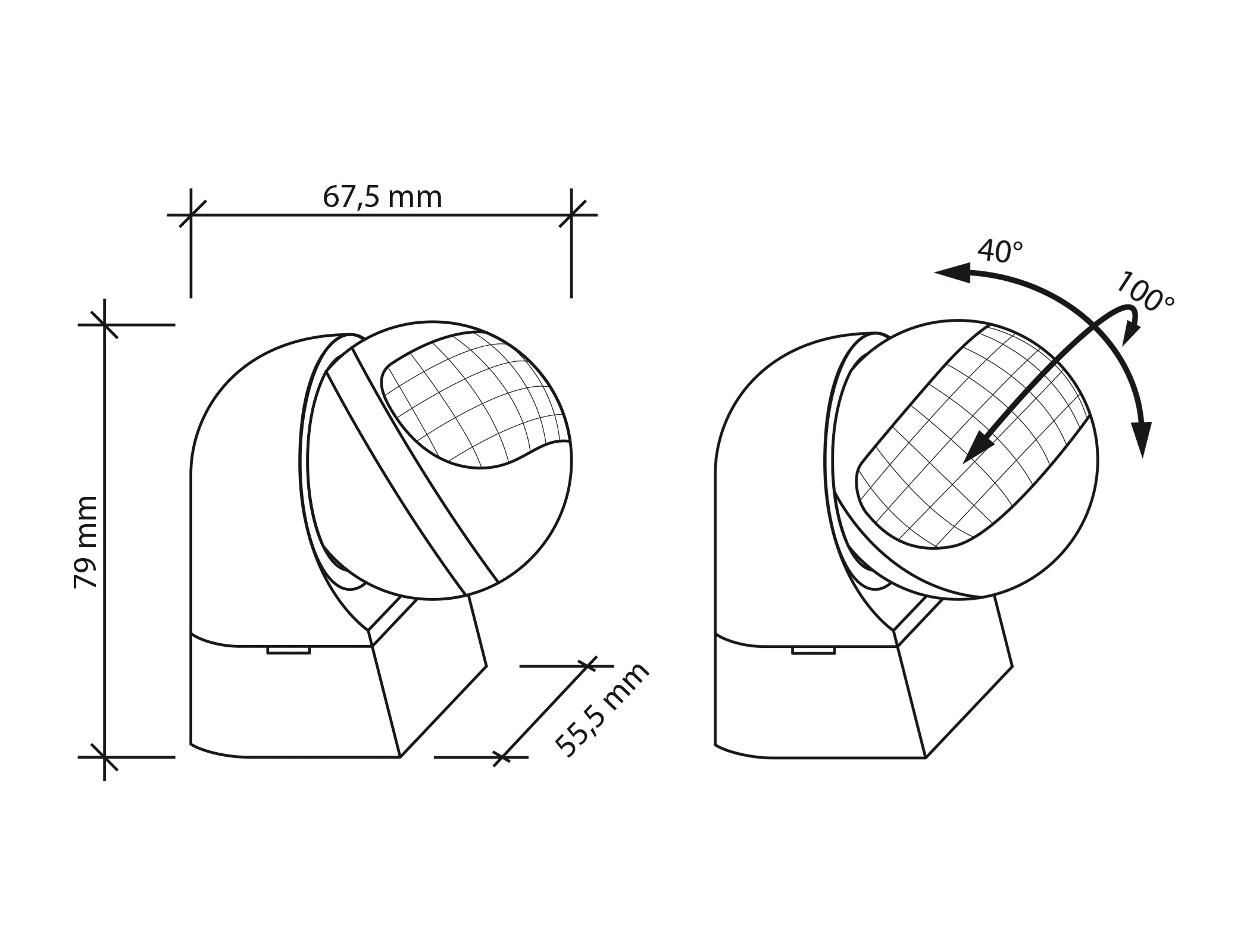

Dimensions: 79x55,5x67,5mm
Housing material: Plastic
Color: Anthracite



Assembly and operating instructions as PDF



In scope of delivery:

  • 1 x SEBSON® IR motion detector



Item ID 4276
Condition New
Age rating No age restriction
Manufacturer SEBSON
Manufacturing country China
Content 1 piece
Weight 97 g
Net weight 97 g
