HF sensor, range 5-15m/180°, max.1200/600W, IP20
graduated prices:
| Minimum quantity: 3 | EUR 18.99 |
EUR 19.99
Content
1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/61/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "f9eeedd01afadc1149b6c4de12895b84");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/61/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "f9eeedd01afadc1149b6c4de12895b84");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('673de66762f19', 'paypal', 'pay', 'rect', 'blue');
});
} else {
renderPayPalButtons('673de66762f19', 'paypal', 'pay', 'rect', 'blue');
}
Ready for shipment, delivery time 2 days
Item number HF_WAL_A
Safely
shopping
shopping
Free Return
from 40 €
from 40 €
Free Support
0231 2821758
0231 2821758

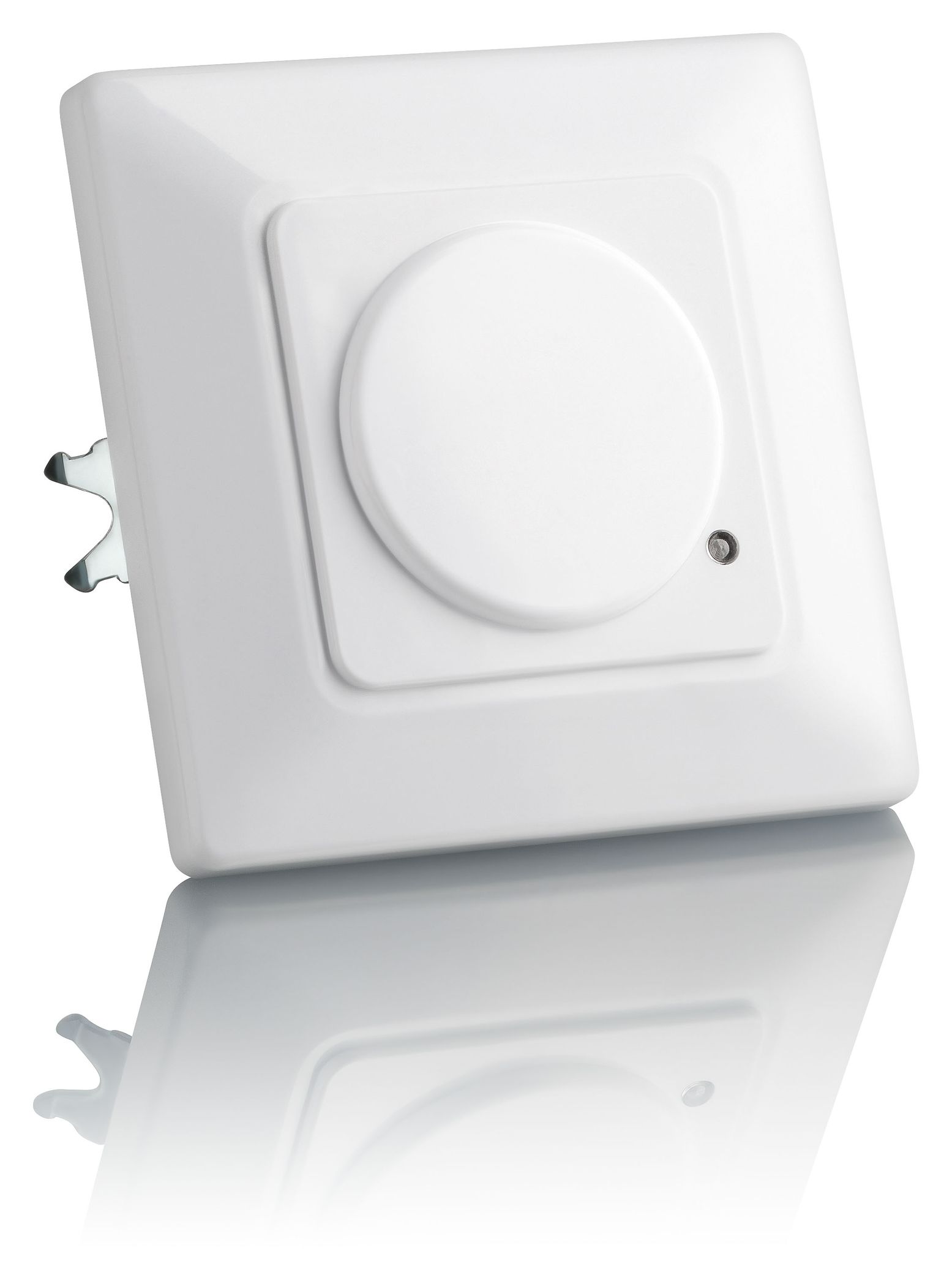

Flush-mounted high-frequency motion detector for indoor use
This active motion detector generates high-frequency electromagnetic waves (5.8 GHz) and receives their echo after impact with moving objects. In this way, the motion detector reacts independently of the temperature of the detected objects. The smallest movements within the detection range of the motion detector can be detected. High-frequency technology enables the perception of movements through doors, glass panes or thin walls. The integrated microprocessor triggers the "Close circuit" or "Switch on light" command almost instantaneously.

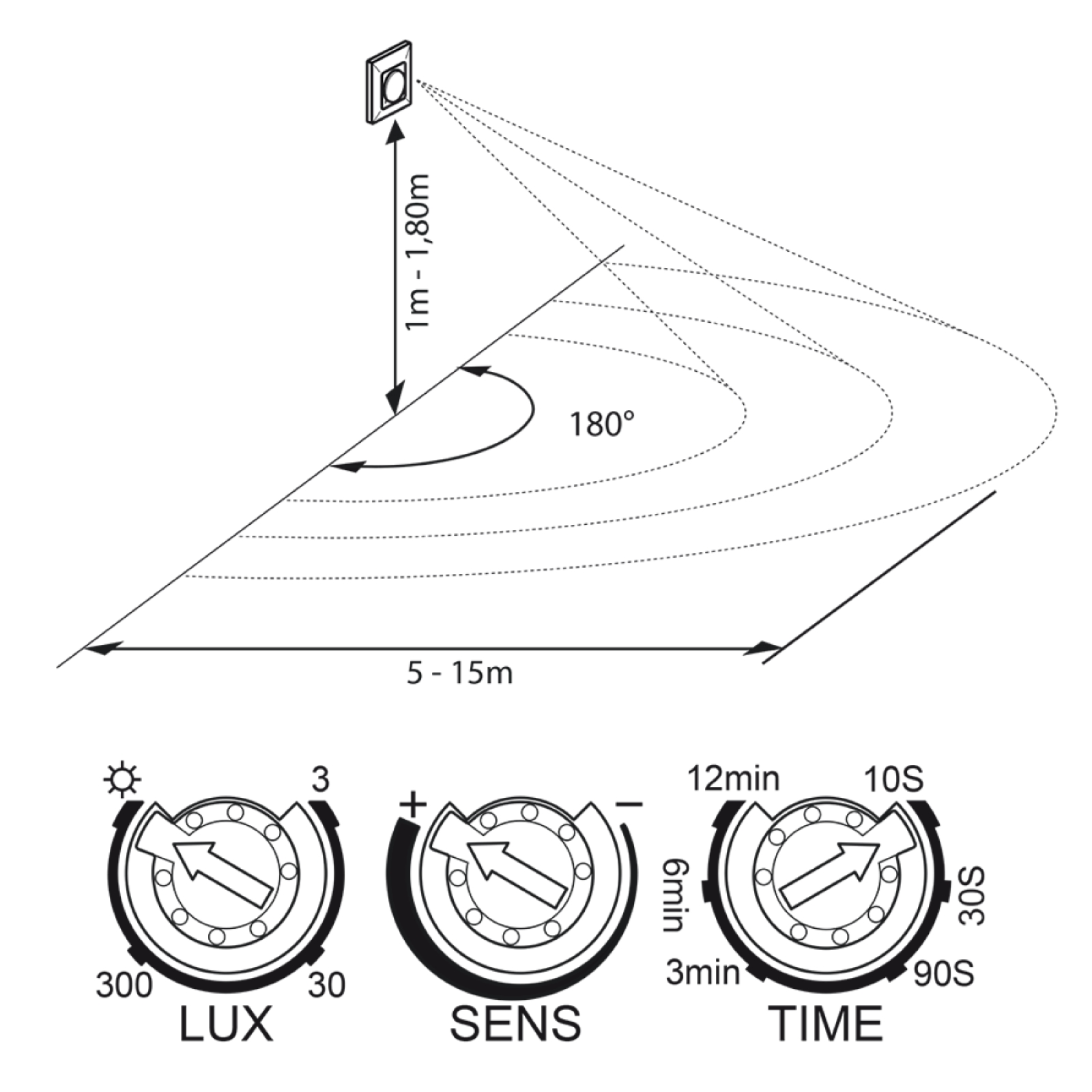

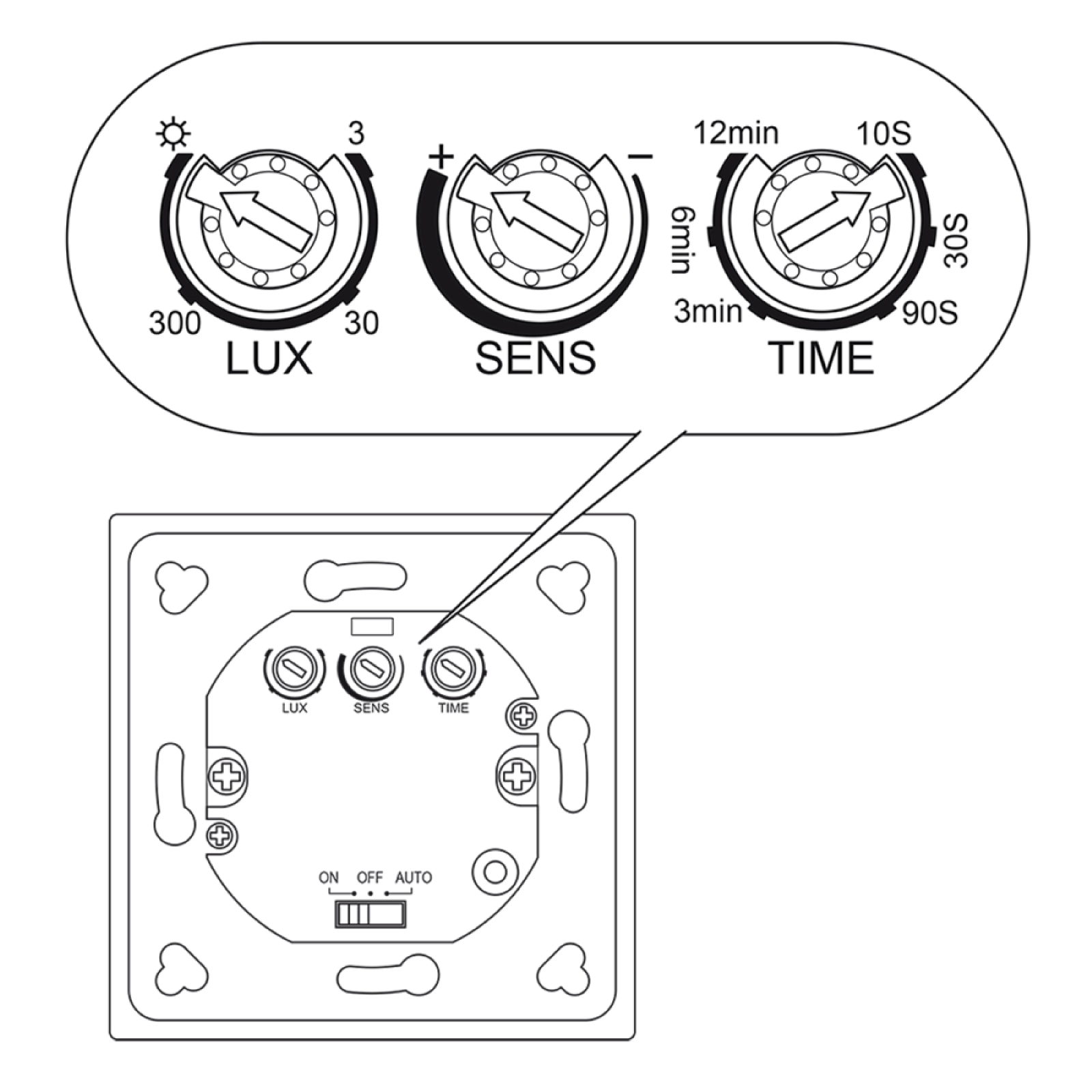

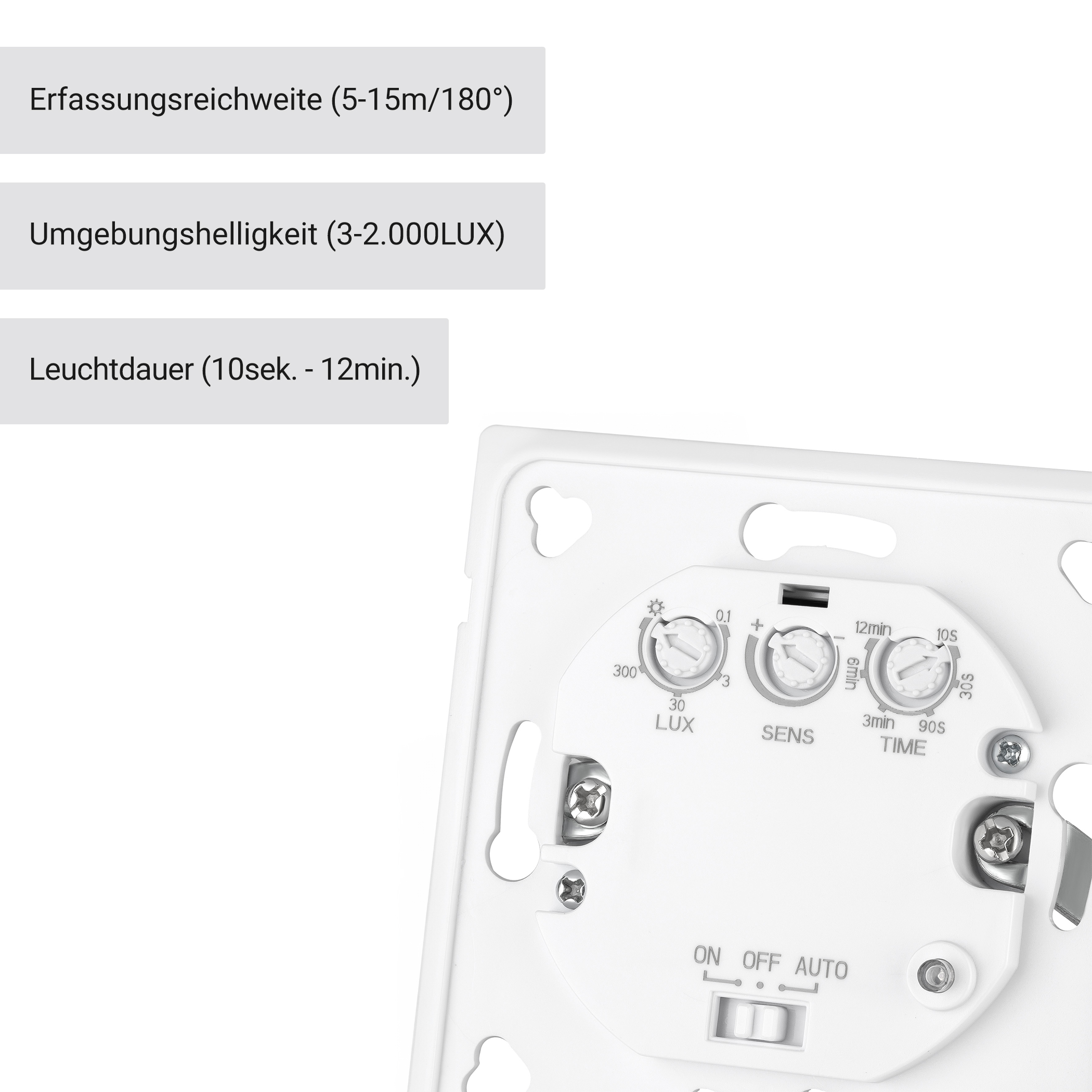

The RF sensor detects movements of persons, large animals and vehicles within an adjustable detection range of 5 to 15 metres at a detection angle of 180° and switches on the connected lighting. After a preset time of approx. 10 seconds to 12 minutes, the motion detector switches off again when no more movement is detected. With the aid of a controller, the switch-on sensitivity can be regulated in relation to the ambient brightness (in the range between 3 and 2,000 LUX). This motion detector can be switched on and off as required via a switch on the front panel.
Minimum radiation exposure
The radiation emitted by the sensor has a power of approx. 0.2mW. This means that the power of the radiation is about 1/5000th that of a mobile phone. This motion detector can therefore be used without hesitation.
HF advantages:
- Independent of the temperatures of the objects to be detected
- Virtually instantaneous reaction
- Detection of the smallest movements
- Detection through doors, glass panes and thin walls
- No significant radiation exposure

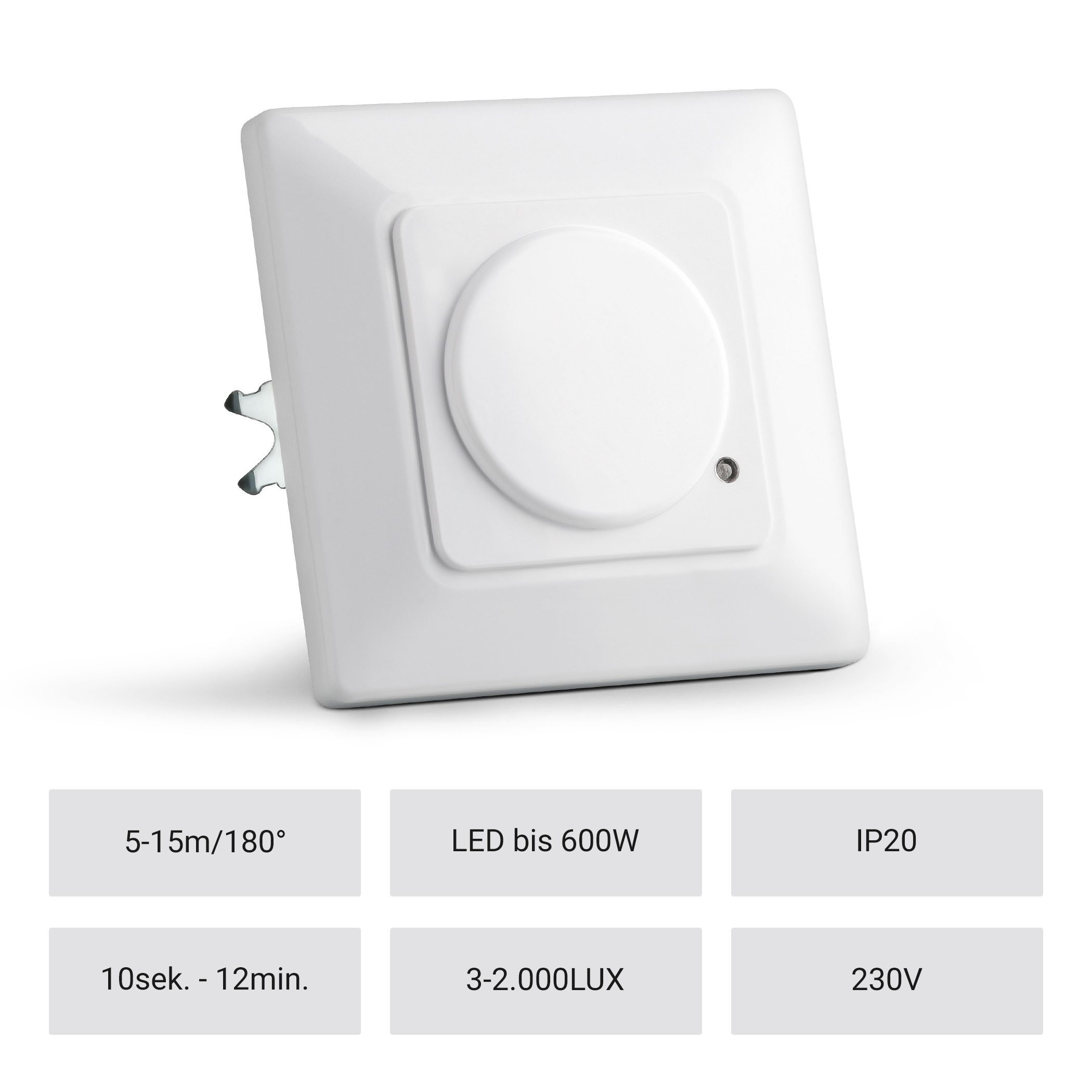

Product features
| Operating voltage: | 220-240V AC 50/60Hz |
| Max. Power consumption: | max. 1200W with usual lamps, max. 600W with energy saving lamps |
| Performance: | ~ 0,9W |
| Power consumption on standby: | 0,5W |
| Transmission power: | 0.2mW |
| Detection speed: | 0,6-1,5m/s |
| Detection range: | 5-15m/180° |
| Ambient brightness: | < 3-2.000LUX |
| Protection: | IP20 |
| Protection class: | II |
| Frequenzy: | 5.8GHz CW |
| Switch-off delay: | Min. 10s +/-3s - Max. 12min +/-1min |

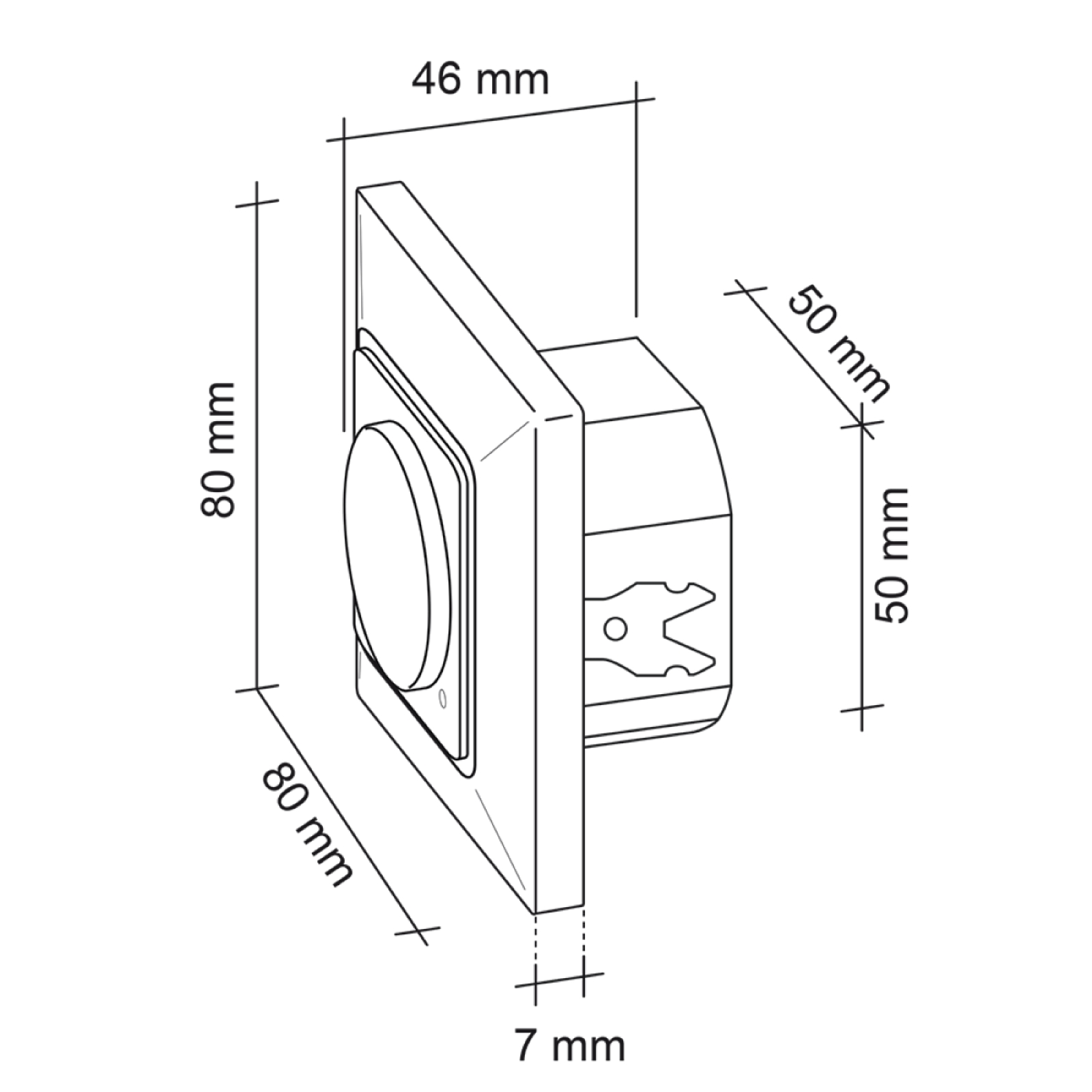

| Dimensions cover: | 80x80x46mm |
| Suitable for flush-mounted boxes: | 60mm |
| Suitable for cavity boxes: | 68mm |
| Housing material: | Plastic |
Assembly and operating instructions as PDF
In scope of delivery:
- 1 x SEBSON® HF motion detector
| Item ID | 3922 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 95 g |
| Net weight | 95 g |
